        Laser Land Leveler

Products Introduction:
FW laser controlled land leveling system is used in highway, railway, air port, mine, tunnel, bridge, building, water conservancy, agriculture, stock raising and so on.
We are still taking up with advanced technology in Agriculture and supply project for laser controlled land leveling System, farmland spaceflight photo management, remote sensing measure and data analysis, agriculture and stock raising management.
The application and development of laser controlled land leveling System in Agriculture
China has 9 hundred million irrigated area, above 95% use surface irrigation. Most of area farmland land leveling is disqualification, bring about much waste and asymmetry of water, restrict the developing of agriculture.
With the developing of economy and level increasing of agriculture, laser controlled land leveling System had applied in agriculture. Recent years, Agriculture department set up a high target which establish a high standard and efficiency agriculture, laser controlled land leveling technology as a important subject has set up by Agriculture department.
Work theory of laser controlled land leveling System

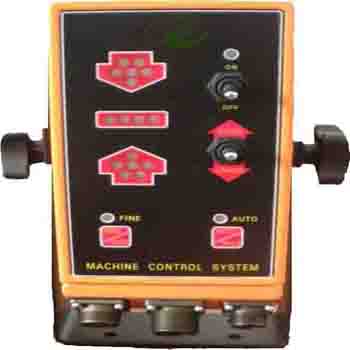

The system of laser controlled land leveling consist of laser emitter, laser receiver, electromotion extension arm (Hand extension arm), controller, electric appliance hydraulic pressure discreteness and bucket.

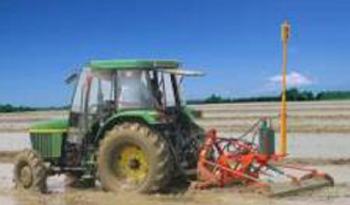

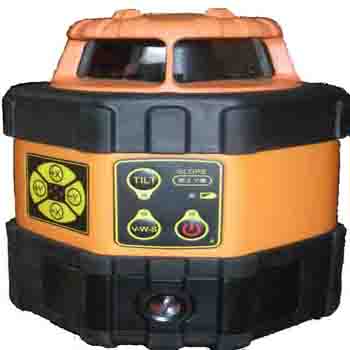

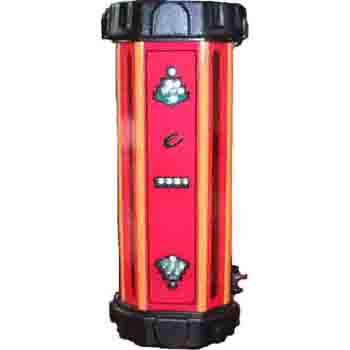

Laser emitter eradiate laser beam which could rotate 360°, forming a datum plane, the laser receiver which install in the grader scraper send the signal to controller uninterrupted, after modifying by controller and send the signal to hydraulic control valve. Hydraulic control system control oil cylinder and adjust the drag bucket  spade to make land leveling.
Work circumstance of laser controlled land leveling system
Wilderness second plowing, farmland retread, farmland leveling, sloping field changed to terrace, paddy field leveling, glebe leveling.
The benefit of laser controlled land leveling system
Save water—laser controlled land leveling technology could make the flatness arrive1cmerror, normally could save water 30%. Every unit of area could save 100 stere and it arrive the saving purpose.
Save land—through laser controlled land leveling technology to control the ridge of field, it could save 3%-5%.
Save fertilizer—Because of increasing the flatness, it decrease the lose of fertilizer and make it level off degree. It increases the rate of utilization of fertilizer to 20%, insuring the seedling emergence efficiency.
Increase production—every unit of area increase the production 20%-30%.
Decrease cost—Using this kind of technology, it could decrease the cost 6.3%-15.4% of production of rice, wheat, soybean, cotton and corn.
